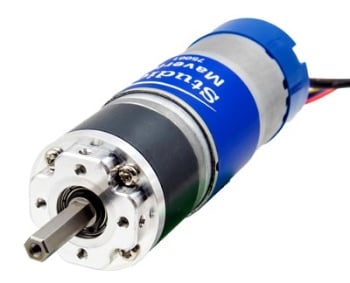

Maverick Planetary DC Gear Motor (19.2:1 ratio, 12V, w/Encoder, 6mm hex shaft)

Clover Motor Mount – Machined Aluminum Motor Mount for Maverick Series

The Clover Motor Mount (#76137) is specifically designed to mount a Maverick planetary motor inside Studica’s U-channel structural system. Crafted from premium machined aluminum, it offers rugged durability for robotics builds that undergo frequent reuse and are exposed to vibration, competition stress, and classroom wear.

The Maverick 12V DC Gear Motor 61:1 w/Encoder from Studica Robotics is an ideal high torque motor for robotics, designed for strength to endure competitions, with 100rpm and 708 oz-in of torque.

To connect to the REV Robotics Control Hub, the Maverick Encoder Cable (#70163) is required as an Add-on.

Note: This motor is legal for FIRST (FTC) competitions.

The Maverick Encoder Cable for FTC will connect the Maverick DC Gear Motor to the REV Control Hub.

The Studica Robotics Maverick Planetary DC Gear Motor w/ Encoder combines a robust 12V DC brushed drive motor with a precision 50.9:1 planetary gearbox and high-resolution Hall-effect encoder. Designed for competitive robotics (FTC legal) and advanced automation applications, this motor delivers smooth output, high torque and accurate control.  Comes with an encoder cable.

Shafts: 6mm hex with a 3mm tapped end

A 50.9:1 gearbox comes standard.

Encoder Output Counts per Revolution of Output Shaft (cpr) 1,221.6 pulses

This motor is FTC Competition Legal

The Studica Robotics Maverick Planetary DC Gear Motor w/ Encoder combines a robust 12V DC brushed drive motor with a precision 3.7.:1 planetary gearbox and high-resolution Hall-effect encoder. Designed for competitive robotics (FTC legal) and advanced automation applications, this motor delivers smooth output, high torque and accurate control.  Comes with an encoder cable.

Shafts: 6mm hex with a 3mm tapped end

A 3.7:1 gearbox comes standard.

Encoder Output Counts per Revolution of Output Shaft (cpr) 88.8 pulses

This motor is FTC Competition Legal

The Studica Robotics Maverick Planetary DC Gear Motor w/ Encoder combines a robust 12V DC brushed drive motor with a precision 1:1 planetary gearbox and high-resolution Hall-effect encoder. Designed for competitive robotics (FTC legal) and advanced automation applications, this motor delivers smooth output, high torque and accurate control.  Comes with an encoder cable.

Shafts: 6mm hex with a 3mm tapped end

A 1:1 gearbox comes standard.

Encoder Output Counts per Revolution of Output Shaft (cpr) 24 pulses

This motor is FTC Competition Legal

The Studica Robotics Maverick Planetary DC Gear Motor combines a robust 12V DC brushed drive motor with a precision 13.7:1 planetary gearbox and high-resolution Hall-effect encoder. Designed for competitive robotics (FTC legal) and advanced automation applications, this motor delivers smooth output, high torque and accurate control.  Comes with an encoder cable.

Shafts: 6mm hex with a 3mm tapped end

A 13.7:1 gearbox comes standard.

Encoder Output Counts per Revolution of Output Shaft (cpr) 328.8 pulses

This motor is FTC Competition Legal
