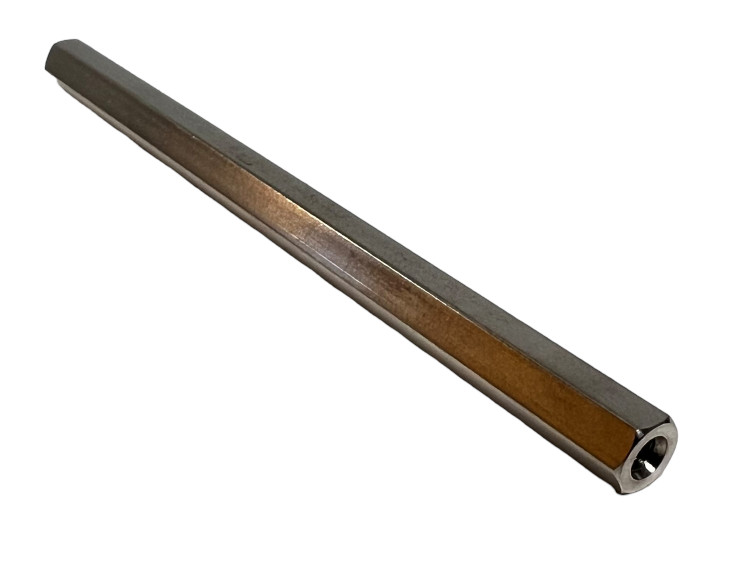

The 6mm x 96mm Hex-Shaft is made of stainless steel and is used throughout our building system as drive components. The Hex-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

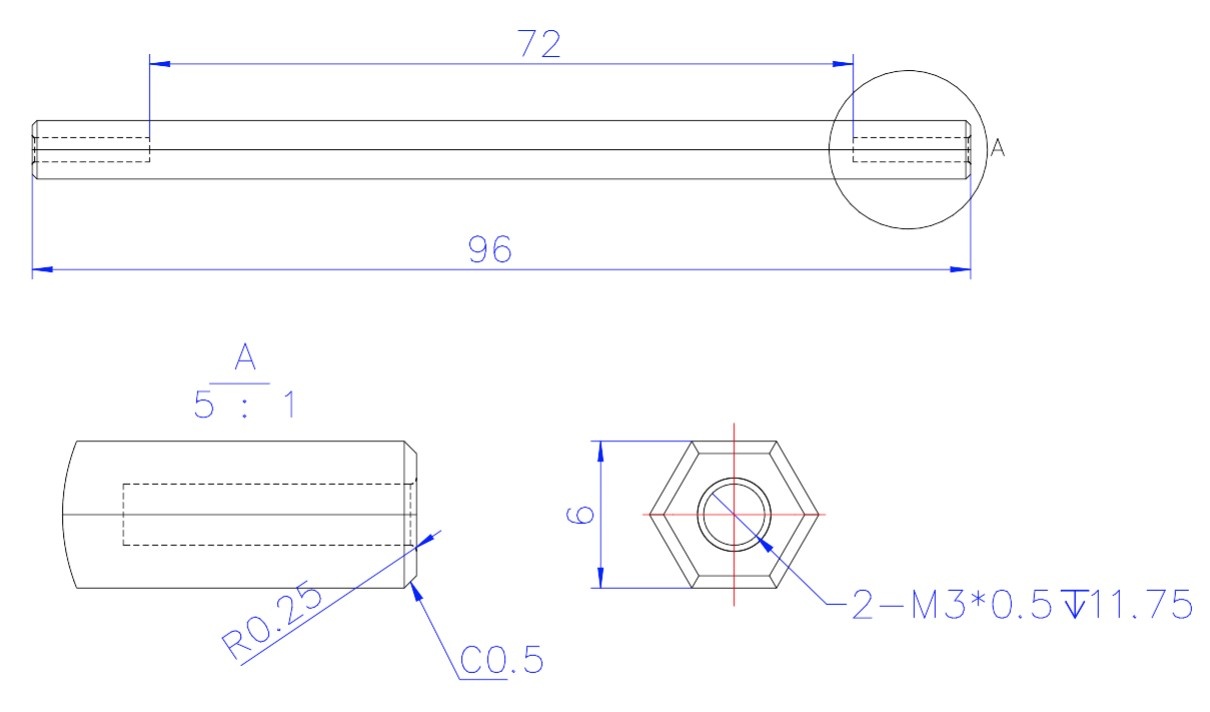

STEP file
OnShape Model link
The Studica Robotics 6mm x 432mm Hex-Shaft is made of stainless steel and is used throughout our building system as drive components. The Hex-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.
The 6mm x 140mm Hex-Shaft is made of stainless steel and is used throughout our building system as drive components. The Hex-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.
The Studica Robotics 6mm Hex-Shaft Hub (4 pack) is used to connect any Studica wheel and/or motor with a 6mm shaft.
The Studica Robotics 1-1 Motor Hex-Shaft Kit can be used with the Studica Maverick or any FTC legal motor such as the Neverest Classic (6600 RPM) or the REV HD Hex motor (6000 RPM). The kit includes a faceplate which supports the Studica Robotics building platform. The shaft is press-fit onto the motor's shaft.
The Studica Robotics enhanced wheel Hex-shaft hub kit is ideal for use with the Omni and Mecanum wheels for a strong axle hold.
The Studica Robotics 6mm Hex-shaft collar clamp (2-piece) has a 6mm Hex-hole and dimensions of 20mm x 8mm.
The Studica Robotics Hex-Shaft Coupling has an ID of 6mm and an OD of 12mm. It can be used with the 6mm Hex-Shaft Axle and a 6mm shaft DC motor.
The Studica Robotics Hex-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the Hex-Shaft axles.
This Studica Robotics 1mm nylon spacer 24-pack is used to space gears, sprockets, wheels, and other parts along a 6mm Hex-shaft. Mix and match with various spacer lengths.
This 1mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm Hex-shaft. Mix and match various spacer lengths.
