    Flanged Ball Bearing 6mm ID, 14mm OD, 15mm FOD (12 pack)

    Be the first to review this product

    The Flange Bearing 14mm OD fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axels.

    • Quantity: 1 or 12
    • Material: AISI440C stainless steel
    • Sealed Type: ZZ metal shields
    • Precision: ABEC-3
    • Clearance: C0
    • Lubrication:Kyodo SRL Grease

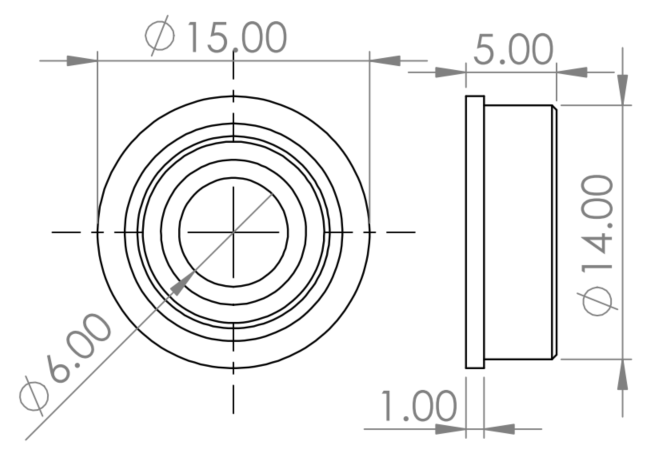

    • ID (inner diameter)/Bore:6 mm
    • OD (outer diameter): 14 mm
    • OD of Flanged Size: 15 mm
    • Width: 5 mm
    • Thickness of Flange: 1 mm
    • Step File
    MFR Part #: 76302-12
    $17.99
    Availability: In stock
