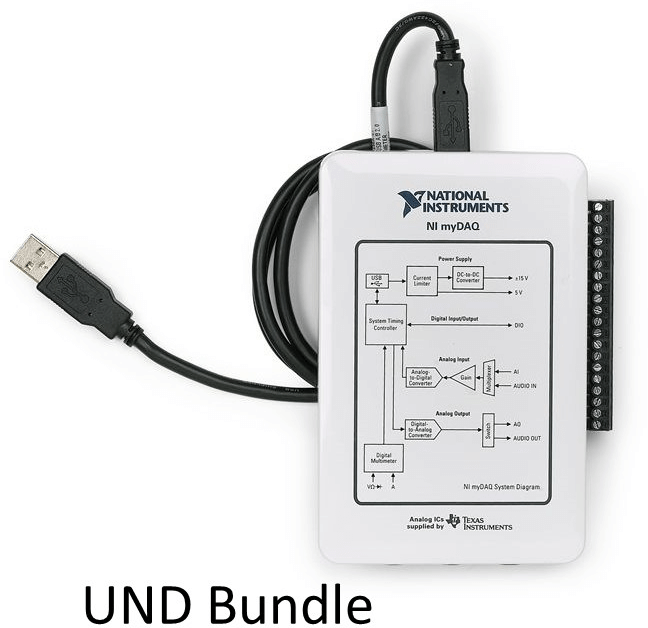

UND Student NI myDAQ Bundle - EE304 Full Kit

NI myDAQ student bundle for University of North Dakota - Majors in ENGR206, includes:

• 1 - NI myDAQ with LabVIEW, NI Multisim and NI Ultiboard
• 1 - myDEV ProtoBoard for NI myDAQ
• 1 - 140 piece Jump Wire Kit
• 1 - 370 piece 1/4W Resistor Kit
• 2 - 1000 pF 100 Volt Silver Mica Capacitor
• 1 - Choke, Axial, Conformal, 1000 uH 5% Inductor
• 3 - Inductor, Toroid, Vertical, 1000.0 uH, 1.3 IDC, 0.4 OHM
• 3 - IC OP amp GP 1MHZ 8DIP
• 1 - 9V battery
• 1 - Soldering Kit
• 1 - Alligator Clips
• 2 - 100nF, 10 nF, 1uF & 10uF Capacitor
• 1 - LED Green Light
• 1 - LED Red/Orange Light

NI myDAQ student bundle for University of North Dakota - Majors in EE206L, includes:

• 1 - NI myDAQ with LabVIEW, NI Multisim and NI Ultiboard
• 1 - myDEV ProtoBoard for NI myDAQ
• 1 - 140 piece Jump Wire Kit
• 1 - 370 piece 1/4W Resistor Kit
• 2 - 1000 pF 100 Volt Silver Mica Capacitor
• 1 - Choke, Axial, Conformal, 1000 uH 5% Inductor
• 3 - Inductor, Toroid, Vertical, 1000.0 uH, 1.3 IDC, 0.4 OHM
• 3 - IC OP amp GP 1MHZ 8DIP
• 1 - 9V battery
• 1 - Alligator Clips

The EE201L Electric Lab Partial Kit bundle for University of North Dakota students includes:

• 1 - 350 pc. Pre-formed Jumper Wire Kit
• 3 - 1k Resistors
• 6 - 510Ω Resistors
• 2 - 1MΩ Resistors
• 3 - Diode Ultra Fast Recovery Rectifier 100 Volt 0.3A 2-Pin DO (1N4148)
• 2 - Transistor General Purpose BJT NPN 40 Volt 0.2 Amp 3-Pin TO-92 (2N3904-R)
• 4 - LED Uni-Color Orange Red 620nm 2-Pin (BVU-5M1QN1)
• 2 - QUAD 2-INPUT POSITIVE NAND GATE DIP-14 (74LS00)
• 3 - QUAD 2-INPUT POSITIVE NOR GATE DIP-14 (74LS02)
• 2 - HEX INVERTER DIP-14 (74LS04)
• 3 - QUAD 2-INPUT POSITIVE AND GATE DIP-14 (74LS08)
• 3 - Triple 3 Input Positive NAND Gate DIP 14 (74LS10)
• 2 - Triple 3 Input Positive AND Gate DIP 14 (74LS11)
• 3 - DUAL 4-INPUT NAND GATE DIP-14 (74LS20)
• 3 - Triple 3 Input NOR Gate DIP 14 (74LS27)
• 3 - QUAD 2-INPUT POSITIVE OR GATE DIP-14 (74LS32)
• 3 - DUAL D-TYPE FLIP-FLOP DIP-14 (74LS74)
• 3 - 4-BIT BINARY FULL ADDER DIP-16 (74LS83)
• 2 - QUAD 2-INPUT EXCLUSIVE OR GATE DIP-14 (74LS86)
• 2 - Asynchronous Decade Counter DIP-14 (74LS90)
• 2 - 3-TO-8 DECODER/DEMULTIPLEXER DIP-16 (74LS138)
• 2 - DUAL 2-TO-4 DECODER/DEMULTIPLEXER DIP-16 (74LS139)
• 2 - 1-TO-8 DATA SELECTOR/MULTIPLEXER DIP-16 (74LS151)
• 2 - DUAL 4-TO-1 DATA SELECTOR/MULTIPLEXER DIP-16 (74LS153)
• 2 - QUAD 2-TO-1 LINE DATA SELECTOR DIP-16 (74LS157)
• 2 - Synchronous 4 Bit Binary Counter DIP-16 (74LS163)
• 3 - 470 Ohm 1/2 Watt 5% (661423)
• 3 - 220 Ohm 1/2 Watt 5% (661343)
• 3 - LED Display 7-Segment Red 0.30 Inch Common Anode LHDP/RHDP 2.5mcd (24740)
• 3 - SN74LS47N - 7447 IC (296-3712-5-ND?)
• 1 - 2390 Tie Point Breadboard with Jumper Wire Kit
• 4 - LED Red/Orange 5MM
• 1 - Alligator Clips

Does not include myDAQ or Protoboard.

NI myDAQ student bundle for University of North Dakota students includes:

• 1 - NI myDAQ with LabVIEW, NI Multisim and NI Ultiboard
• 1 - 350 pc. Pre-formed Jumper Wire Kit
• 1 - myDEV ProtoBoard for NI myDAQ
• 3 - 1k Resistors
• 6 - 510Ω Resistors
• 2 - 1MΩ Resistors
• 3 - Diode Ultra Fast Recovery Rectifier 100 Volt 0.3A 2-Pin DO (1N4148)
• 2 - Transistor General Purpose BJT NPN 40 Volt 0.2 Amp 3-Pin TO-92 (2N3904-R)
• 4 - LED Uni-Color Orange Red 620nm 2-Pin (BVU-5M1QN1)
• 2 - QUAD 2-INPUT POSITIVE NAND GATE DIP-14 (74LS00)
• 3 - QUAD 2-INPUT POSITIVE NOR GATE DIP-14 (74LS02)
• 2 - HEX INVERTER DIP-14 (74LS04)
• 3 - QUAD 2-INPUT POSITIVE AND GATE DIP-14 (74LS08)
• 3 - Triple 3 Input Positive NAND Gate DIP 14 (74LS10)
• 2 - Triple 3 Input Positive AND Gate DIP 14 (74LS11)
• 3 - DUAL 4-INPUT NAND GATE DIP-14 (74LS20)
• 3 - Triple 3 Input NOR Gate DIP 14 (74LS27)
• 3 - QUAD 2-INPUT POSITIVE OR GATE DIP-14 (74LS32)
• 3 - DUAL D-TYPE FLIP-FLOP DIP-14 (74LS74)
• 3 - 4-BIT BINARY FULL ADDER DIP-16 (74LS83)
• 2 - QUAD 2-INPUT EXCLUSIVE OR GATE DIP-14 (74LS86)
• 2 - Asynchronous Decade Counter DIP-14 (74LS90)
• 2 - 3-TO-8 DECODER/DEMULTIPLEXER DIP-16 (74LS138)
• 2 - DUAL 2-TO-4 DECODER/DEMULTIPLEXER DIP-16 (74LS139)
• 2 - 1-TO-8 DATA SELECTOR/MULTIPLEXER DIP-16 (74LS151)
• 2 - DUAL 4-TO-1 DATA SELECTOR/MULTIPLEXER DIP-16 (74LS153)
• 2 - QUAD 2-TO-1 LINE DATA SELECTOR DIP-16 (74LS157)
• 2 - Synchronous 4 Bit Binary Counter DIP-16 (74LS163)
• 3 - 470 Ohm 1/2 Watt 5% (661423)
• 3 - 220 Ohm 1/2 Watt 5% (661343)
• 3 - LED Display 7-Segment Red 0.30 Inch Common Anode LHDP/RHDP 2.5mcd (24740)
• 3 - SN74LS47N - 7447 IC (296-3712-5-ND?)
• 1 - Soldering Kit (AK-100)
• 1 - Alligator Clips
• 1 - LED Green Light
• 1 - LED Red/Orange Light
• 1 - 2390 Tie Point Breadboard with Jumper Wire Kit

• 1 - 9V battery
• 1 - Thermistor 10k
• 5 - LED indicators - Red
• 2 - 1.5MHZ 8DIP Op-Amps
• 2 - 1kΩ Resistors
• 2 - 4.7kΩ Resistors
• 2 - 3.3kΩ Resistors
• 2 - 2.2kΩ Resistors
• 2 - 15kΩ Resistors
• 3 - 7.5kΩ Resistors
• 1 - Thermistor PTC 100 Ohm 2 Pin
• 1 - Thermistor NTC K +/-10% 100k Ohm
• 1 - 1/2" Circular Force Sensing Resistor
• 1 - 1.5 To 24 Volt Motor Grab Bag

(Does Not Include the myDAQ/Protoboard)

• 1- 140 piece Jump Wire Kit
• 1- 370 piece 1/4W Resistor Kit
• 1- 100 piece Capacitor Component Kit
• 1 - Choke, Axial, Conformal, 1000 uH 5% Inductor
• 2 - 1000 pF 100 Volt Silver Mica Capacitor BC# 8860720
• 3 - Inductor, Toroid, Vertical, 1000.0 uH, 1.3 IDC, 0.4 OHM
• 3 - IC OP amp GP 1MHZ 8DIP
• 1 - 9V battery
• 1 - Alligator Clips
