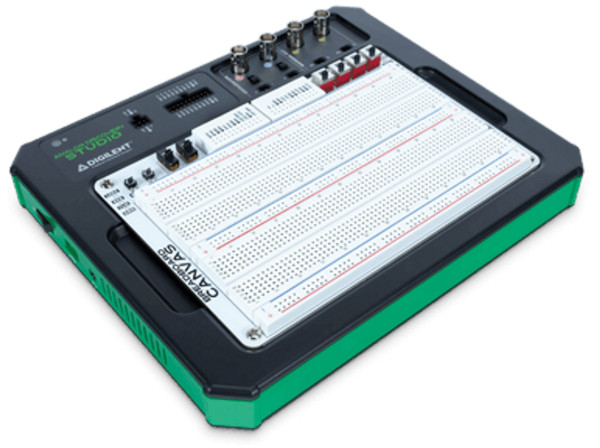

    Analog Discovery Studio for Students

    The Analog Discovery Studio is a fully functional, portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory. Equipped with 13 instruments, including an Oscilloscope, Logic Analyzer, Spectrum Analyzer, Waveform Generator, and more; the Analog Discovery Studio provides an entire stack of bench-top instruments with a convenient, replaceable, and breadboardable interface, perfect for enabling student learning anywhere.

    Students - Current academic verification is required to purchase this product.

    MFR Part #: 410-384
    $580.17

    With lab spaces decreasing and student enrollment increasing, many institutions are choosing studio learning as a supplement to traditional laboratories, creating a need for a portable test and measurement bench that can support all types of circuits projects. With an Analog Discovery Studio, students can continue their hands-on learning in the library, office hours, a tutoring center, a classroom, at home or even in a coffee shop.

    The Analog Discovery Studio supports hands-on learning for any student, and is available with free Mac, Linux, and Windows compatible software, WaveForms.

    Features

    Analog Inputs:

    • Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, Voltmeter, Impedance Analyzer, and Data Logger
    • Two analog input channels, accessible through BNC or MTE connectors
    • Channel type: differential (with MTE) or single-ended (with BNC)
    • Analog bandwidth with BNC cables: 30+ MHz @ 3dB
    • Analog bandwidth with MTE flywires: 9 MHz @ 3dB
    • Input range ±25 V (±50 V diff)
    • Input protected to ±50 V
    • 14-bit resolution
    • Operate at 100 MS/s

     Analog Outputs:

    • Used in the Waveform Generator and Network Analyzer
    • Two arbitrary waveform generator channels, accessible through BNC or MTE connectors
    • AC amplitude (max): ±5 V
    • Analog bandwidth (BNC or MTE connectors: 8 MHz @ 3dB)
    • Operate at 100 MS/s

    Power Supplies:

    • 12 volt supply: 12V ±5%; 0.2 Amps max
    • -12 volt supply: -12V ±5%, 0.2 Amps max
    • 5 volt supply: 5.0 V ±5%; 1.0 Amps max
    • 3.3 volt supply: 3.3 V ±5%; 1.0 Amps max
    • V+ and V- rails: 0.5 V to 5 V (V+), and -0.5 V to -5 V (V-)
      • Maximum power output: 2.1W for each supply
      • Maximum current output: 700mA for each supply.
    • Note: Remove the protective foam from underneath the Breadboard Canvas before using the power supplies

    Digital Inputs and Outputs:

    • Used in the Logic Analyzer, Pattern Generator, Protocol Analyzer, and Digital I/O
    • Channels: 16
    • Input logic standard: LVCMOS (1.8/3.3 V, 5 V tolerant)
    • Output logic standard: LVCMOS (3.3 V, 12 mA)

    Product Compliance:

    • HTC: 8471809000
    • ECCN: EAR99

    What's Included

    Analog Discovery Studio (410-384):

    • Analog Discovery Studio
      • Breadboard Canvas
      • 15 V 2.4 A power supply
      • European and UK plug adapters
      • USB A to B cable
      • A set of Analog Discovery Studio MTE Cables

    Software

    What is WaveForms?

    WaveForms is the free software application for the Analog Discovery Studio and enables use of the available analog and digital instruments. The software has been refined by customer feedback for over 10 years and features a computer and laptop friendly user interface that has the feel of traditional benchtop software. The Analog Discovery Studio communicates with WaveForms via a USB connection to your computer, allowing users to capture, record, analyze, and generate mixed signal and mixed domain waveforms. WaveForms can be downloaded and installed in under 60 seconds and can be tested without hardware using its demo mode feature. In addition to the use of instruments in the application, the WaveForms application has a script editor tool, which allows custom scripting of the instrument in JavaScript. WaveForms is designed to be run on a laptop or desktop computer and is Mac, Windows, and Linux compatible.

    The following instruments are available in the WaveForms application for the Analog Discovery Studio:

    • Oscilloscope
    • Waveform Generator
    • Power Supplies
    • Voltmeter
    • Data Logger
    • Logic Analyzer
    • Pattern Generator
    • Static I/O
    • Spectrum Analyzer
    • Network Analyzer
    • Impedance Analyzer
    • Curve Tracer
    • Protocol Analyzer
