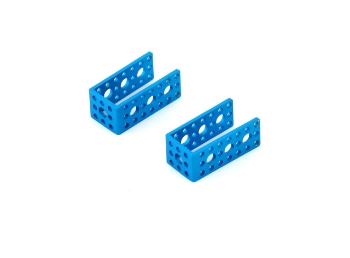

Makeblock U Bracket B - (Blue) (Pair)

This Makeblock U-Bracket C can operate with 8mm shaft, 8mm bearing and 16mm bearing for mounting 4mm or 8mm shaft. This U-Bracket is made with alluminum alloy material, it can vertically bear high pressure.

This motion closed type slide unit has an 8 mm inside diameter and is suitable for use in precision motion applications, such as in printing machines and computer numerical control (CNC) equipment. The slide unit, designed to carry a component, has a housing with a flat mounting face and four tapped bolt holes, and circle clips at each end to retain the ball bushing. Ball in the cage loop to run a smooth ball guide surface to ensure even if high-speed operation, low noise.

This Makeblock Kit contains frequently-used parts in building motion mechanisms.

Part List:

• 4x Link Rod
• 2x Shaft Connector-4
• 2x Timing Pulley18T
• 2x Timing Pulley 66T
• 2x Timing Pulley 90T
• 4x Timing Pulley Slice 90T
• 2x Timing Belt 123T
• 1x Timing Belt 216T
• 4x Threaded Shaft 4x39mm
• 4x Shaft Collar 4mm
• 10x Flange Bearing 4x8x3mm
• 24x Socket Cap Screw M4x14
• 12x Nut M4
• 8x Headless Set Screw M3x5
• 8x Plastic Rivet R4120
• 16x Plastic Ring 4x7x2mm

The Makeblock MG995 Servo Hub is a aluminium high quality part ideal for fitting JR standard, FUTABA standard servos.

MEDS15 Servo Motor Bracket is specifically designed to attach the MEDS15 Servo to your maker project. Made with durability and versatility in mind, this bracket is made from 6061 aluminum that is 2mm thick.

The Makeblock M4 Thread Drive Beam is designed to mate with M4 thread rod to transmit motion from a motor to the beam. With other 4mm through holes, you can easily mount it to other makeblock components to complete your DIY projects.

Makeblock Motion Block Bracket A serves as a necessary component in a motion guide robot. This bracket includes seamless connectivity and flexibility, which is suitable for use in multiple motion projects.

Me Slide Potentiometer is one type of potentiometer that can be used to control volume, light intensity, motor speed, movement control, etc. in interactive projects.

Features

• Compatible with the Arduino sensor expansion board;

• Three 4mm mounting holes and one RJ25 port for easy assembling;

• With one red power indicator and one blue potentiometer indicator;

• Anti-reverse connection protection feature.

How Does It Work?

This Me Slide Potentiometer can be combined with Me Orion (or other Arduino IO/sensor expansion board) in interactive projects. Move the lever from one side to the other, its output voltage will range between 0 V to the VCC you apply. The VCC Me Slide Potentiometer supports vary from 3.3V to 5V.


Note

If you connect this module to Me Orion, please make sure you connect it to port 6, port 7 or port 8.

Belt Connector B provides a simple way to clamp open-end timing belts. Mating with some clamping parts, you can  use a open-end timing belts more flexible for example using in the belt system of the 3D printer.

Features:

• Made from 6061 aluminum extrusion, high precision and strength
• Compatible with Makeblock components

The Makeblock Me Compass is a 3-axis digital compass. The main chip is Honeywell HMC5883L. On-board regulator provides stable power for HMC5883L.
