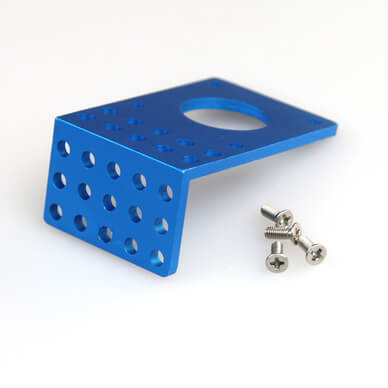

Makeblock 42BYG Stepper Motor Bracket B-Blue

The Makeblock 57BYG Stepper Motor Bracket can be used as the structural support or connection point for Makeblock 57BYG Stepper Motor.

Makeblock 42BYG geared stepper motor is a simple, but very powerful stepper motor with high output torque and response speed but low noise and energy consumptionhas better performance.

It comes with higher torque than 42BYG stepper motor. It can be used as the power motor of some high-performance machine.

Specification:

• Step Angle (degrees) :1.8
• Phase Current: 2.8A
• Wire Number: 4
• Motor Length: 56mm
• Ratio: 5.18:1
• Output Shaft: D shaft 8mm

CNC Motor Bracket is specially designed for fixing 555 High-speed CNC Motor on your projects. With the 4mm through holes on this bracket, you are able to connect it to other Makeblock parts to create projects.

Makeblock plain ball bearing 8*16*5mm can be used with Makeblock 8mm bearing bracket A to support heavy mechanisms.

The Makeblock Me Compass is a 3-axis digital compass. The main chip is Honeywell HMC5883L. On-board regulator provides stable power for HMC5883L.

The Makeblock Me Touch Sensor will be triggered by finger touch. Users can also connect the "TOUCH" pinhole to metal and touch the metal to trigger the sensor. This touch sensor give you the ability to adjust the sensitiity to fit your project. It needs 0.5s for the self-calibration after energized.

Makeblock 42BYG Through-type Lead Screw Stepper Motor is a special stepper motor equipped with a 312mm long T8 lead screw. The motion of the motor will be along a straight line when the T8 lead screw is meshing with the screw thread inside the motor.

When the lead screw is fixed, the motor will achieve a motion which will simplify the XY style motion structure. When the motor is fixed, the lead screw will start a motion, for instance, a pull-out structure created by the lead screw working with a cylinder.

42BYG Through-type Lead Screw Stepper Motor is widely used in all projects that require a high-precision motion.

Makeblock 820 Coreless Motor has both the  positive pitch and the negative pitch, it is usually used in the four-axis aircraft.
